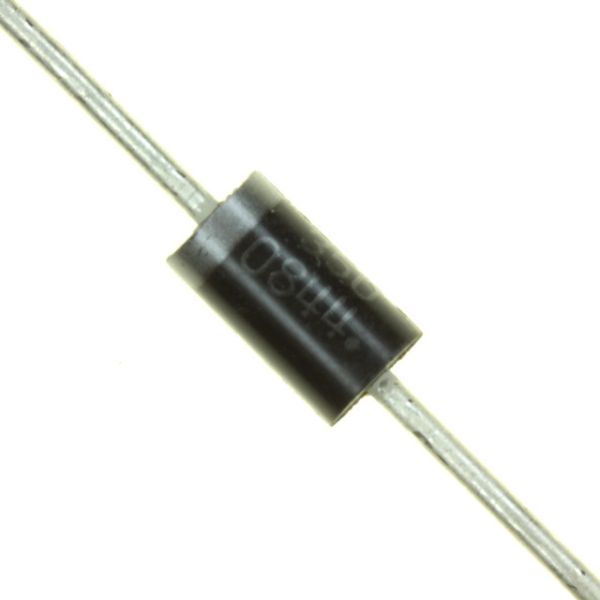

1N5821RLG Rectifier Diode 730nm diode laser Axial Lead Rectifiers

Product Categories

ChongMing Group (HK) Int'l Co., Ltd

Contact Now

Model Number : 1N5821RLG

Certification : new & original

Place of Origin : original factory

MOQ : 100pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000pcs

Delivery Time : 1 days

Packaging Details : Please contact me for details

Description : Diode 30 V 3A Through Hole Axial

Peak Repetitive Reverse Voltage : 30 V

Working Peak Reverse Voltage : 30 V

DC Blocking Voltage : 30 V

RMS Reverse Voltage : 21 V

Average Forward Rectified Current : 3.0 A

Typical Junction Capacitance : 250 pF

Contact Now

3.0 Amp BARRIER SCHOTTKY RECTIFIERS

Features

Electrical Characteristics @ 25℃

Maximum Ratings	IN5820	IN5821	IN5822	Units
Peak Repetitive Reverse Voltage...V_RRM	20	30	40	Volts
Working Peak Reverse Voltage...V_RWM	20	30	40	Volts
DC Blocking Voltage...V_DC	20	30	40	Volts
RMS Reverse Voltage...V_R(rms)	14	21	28	Volts
Average Forward Rectified Current...I_F(av) @ T_A= 55°C	3.0			Amps
Non-Repetitive Peak Forward Surge Current...I_FSM @ Rated Load Conditions, ½ Wave, 60 HZ, T_L = 75°C	80			Amps
Forward Voltage...V_F @ I_F = 3.0 Amps	475	500	525	Volts
DC Reverse Current...I_R @ Rated DC Blocking Voltage T_L = 25°C T_L = 100°C	2.0 10			mAmps mAmps
Typical Junction Capacitance...C_J	250			pF
Operating & Storage Temperature Range...T_J, T_STRG	-65 to 125			°C
