1 Features

• 8.2-V to 45-V Operating Supply Voltage Range

• 1.6-A Maximum Drive Current at 24 V and

  TA = 25°C

• Dual H-Bridge Current Control Motor Driver

  • – Drive a Bipolar Stepper or Two DC Motors

  • – Four Level Winding Current Control

• Multiple Decay Modes

  • – Mixed Decay

  • – Slow Decay

  • – Fast Decay

• Industry Standard Parallel Digital Control Interface

• Low Current Sleep Mode

• Built In 3.3-V Reference Output Small Package and Footprint

• Protection Features

  • – Overcurrent Protection (OCP)

  • – Thermal Shutdown (TSD)

  • – VM Undervoltage Lockout (UVLO)

  • – Fault Condition Indication Pin (nFAULT)

2 Applications

• Automatic Teller Machines

• Money Handling Machines

• Video Security Cameras

• Printers

• Scanners

• Office Automation Machines

• Gaming Machines

• Factory Automation

• Robotics

The DRV8812 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as full H- bridges to drive the motor windings. The DRV8812 is capable of driving up to 1.6-A of output current (with proper heatsinking, at 24 V and 25°C).

A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable.

Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.

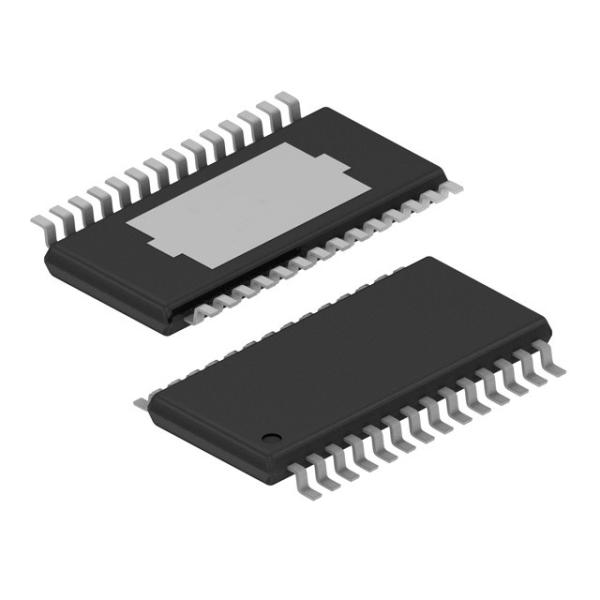

The DRV8812 is available in a 28-pin HTSSOP package with PowerPADTM and in a 28-pin QFN package PowerPADTM (Eco-friendly: RoHS & no Sb/Br).
