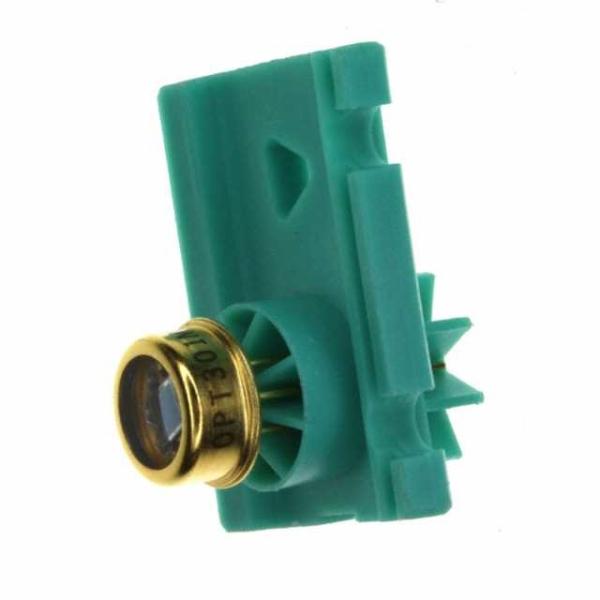

OPT301M HVAC Temperature Sensors Light To Frequency & Light To Voltage Integr Photodiode and Amp

Brand Name : Ti

Model Number : OPT301M

MOQ : Contact us

Price : Contact us

Payment Terms : Paypal, Western Union, TT

Supply Ability : 50000 Pieces per Day

Delivery Time : The goods will be shipped within 3 days once received fund

Packaging Details : USON6

Description : Optical Sensor Ambient 650nm Voltage TO-99-8 Metal Can

Packaging : Tube

LeCM GROUPh : 9.4 mm

Height : 4.19 mm

Operating Supply Voltage : 36 V

Package / Case : TO-99-8

Maximum Frequency : 4 kHz

Contact Now

OPT301M HVAC Temperature Sensors Light To Frequency & Light To Voltage Integr Photodiode and Amp

FEATURES

● PHOTODIODE SIZE: 0.090 x 0.090 inch (2.29 x 2.29mm)

● 1MΩ FEEDBACK RESISTOR

● HIGH RESPONSIVITY: 0.47A/W (650nm)

● IMPROVED UV RESPONSE

● LOW DARK ERRORS: 2mV

● BANDWIDTH: 4kHz

● WIDE SUPPLY RANGE: ±2.25 to ±18V

● LOW QUIESCENT CURRENT: 400μA

● HERMETIC TO-99

APPLICATIONS

● MEDICAL INSTRUMENTATION
● LABORATORY INSTRUMENTATION
● POSITION AND PROXIMITY SENSORS

● PHOTOGRAPHIC ANALYZERS
● SMOKE DETECTORS

DESCRIPTION

The OPT301 is an opto-electronic integrated circuit containing a photodiode and transimpedance amplifier on a single dielectrically isolated chip. The transimpedance amplifier consists of a precision FET- input op amp and an on-chip metal film resistor. The 0.09 x 0.09 inch photodiode is operated at zero bias for excellent linearity and low dark current.

The integrated combination of photodiode and transimpedance amplifier on a single chip eliminates the problems commonly encountered in discrete de- signs such as leakage current errors, noise pick-up and gain peaking due to stray capacitance.

The OPT301 operates over a wide supply range (±2.25 to ±18V) and supply current is only 400μA. It is packaged in a hermetic TO-99 metal package with a glass window, and is specified for the –40°C to 85°C temperature range.
